SOLID-810L Series Laminating Card Printer
SOLID-810L Retransfer Card Printer Laminator/Lamination Module
Add Security and Durability to your ID Cards with the SOLID-810L Laminator
Ultra Fast - Fastest First-Card-Out - Less than 1 minute
Patented RRP Tech Speeds Lamination to New Levels
1mil, 6.mil Patch, or Over-The-Edge Thinfilm Lamination options
Simplex or Duplex Lamination
Inferred (IR) Wireless Communication with IDP SMART-81 Printers
3-Year Advance Exchange Warranty
MSRP US$3509.00 (PN: 653671)

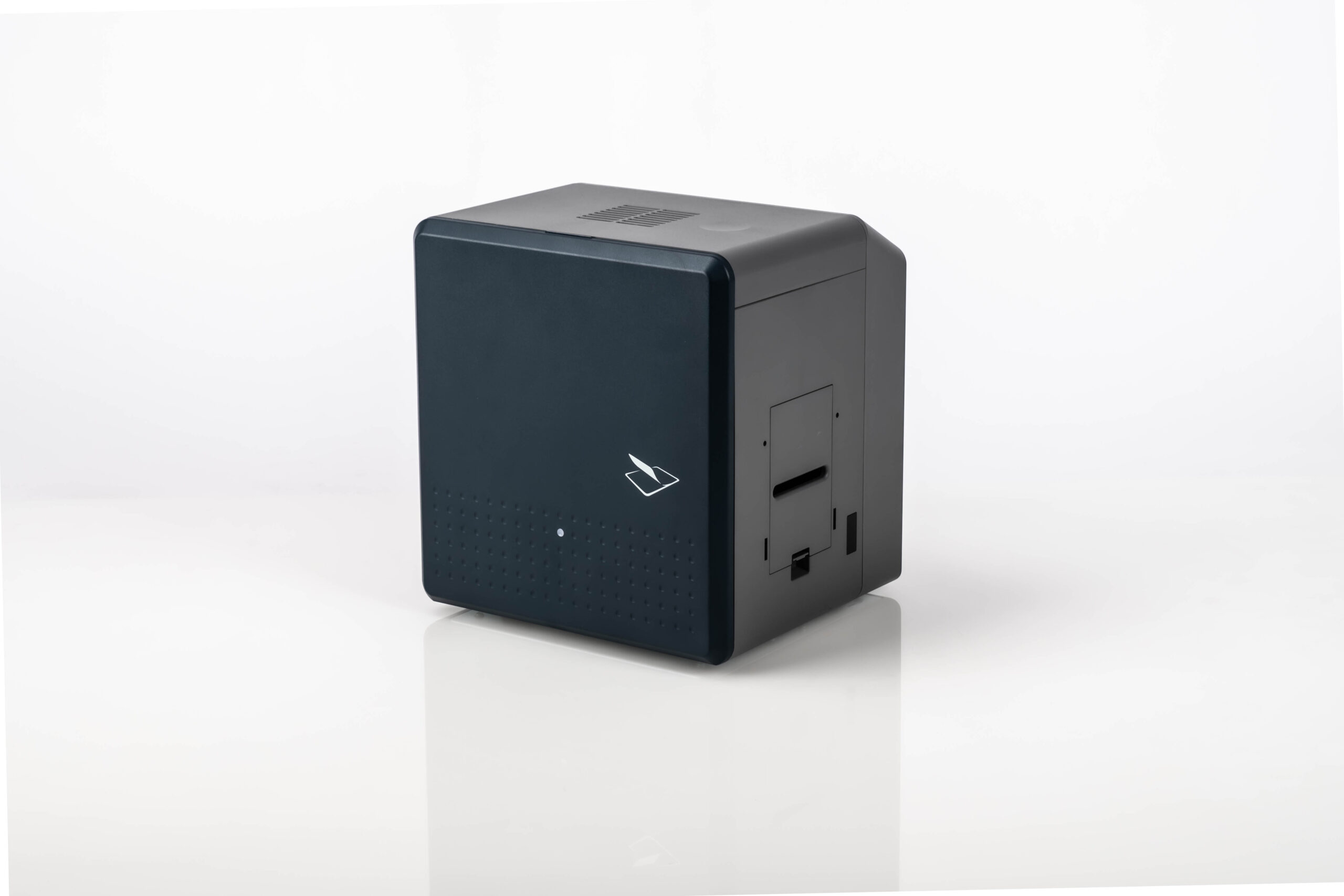

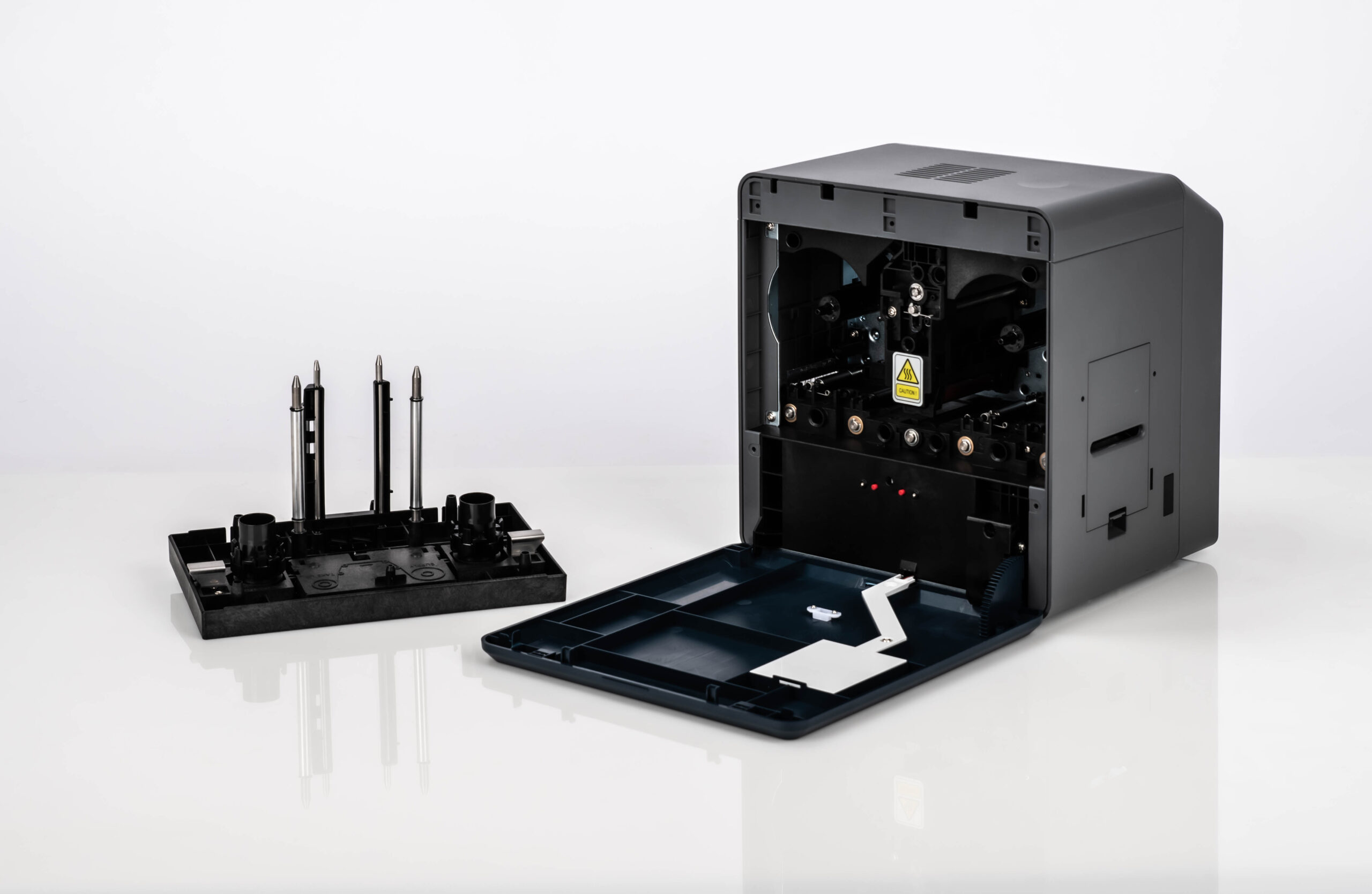

IDP SOLID-810L Lamination Module – Enhanced Card Security & Durability

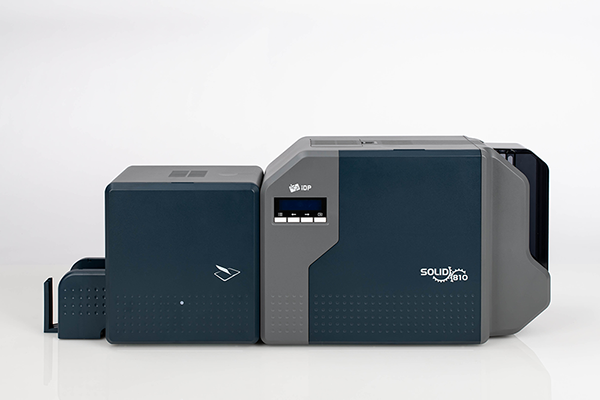

The IDP SOLID-810L Laminator is a high-performance solution engineered to enhance the durability, security, and longevity of printed ID cards. Built exclusively for seamless integration with IDP’s SOLID-810 Series retransfer card printers (SOLID-810S, SOLID-810D, SOLID-810HD), this add-on module uses an intelligent IR sensor for quick, cable-free field installation.
Designed for demanding applications, the SOLID-810L Laminator supports a wide range of patch and overlay laminates, including secure holographic film options to protect against tampering and counterfeiting. Its fast warm-up and high-speed lamination capabilities make it ideal for high-volume card issuance in sectors like government, transportation, education, and corporate security.
Whether you’re producing driver’s licenses, national IDs, or secure access credentials, the SOLID-810L Laminator delivers consistent, high-quality results with advanced protection—backed by IDP’s reputation for reliability and innovation in card printing technology.
| Print Type | Direct Heating Lamination |
|---|---|
| Print Area | Laminating / Edge-to-Edge* |
| Film | Overlay Thinfilm*, .6mil, 1.0mil |
| Card Feeding | Automatic |
| Card Size | ISO CR80 |
| Card Thickness | 0.76mm (30mil) ~ 1.6mm (64mil) |
| Card Type | PC, PVC, PET, Composite PVC |
| Print / Lam Speed | YMCK/Lam 41 sec/card (88 cards/hour) YMCK/K/Lam 51 sec/card (71 cards/hour) |
| Communication | Infrered (IR) Wireless |
|---|---|
| Power Supply | DC 100-240V |
| Power Consumption | 48W60Hz 2.5A |
| Temperature/Humidity | 15~35ºC/35~70% |
| Dimension (Inch WxLxH) | 9.5(W) x 8.9(L) x 10.2(H) |
| Weight (lbs) | 13.7 (lbs) |
| Encoding | NA (see printer specifications) |
| Certifications | CB, CE FCC, KC, CCC |
| Supported Platforms | MS Windows 10/11, Mac OS, Linux |
Ordering Information
| 653671 | SMART-81L Laminator Option. Must attach to SMART-81 Retransfer Printer (not standalone capable) |
Other options are available, please contact your sales person for more information
Ordering Information
| 900864 | SOLID-810 L Laminate “Globe Flags” 1mil Patch Laminate Film, 500 patches per roll | |

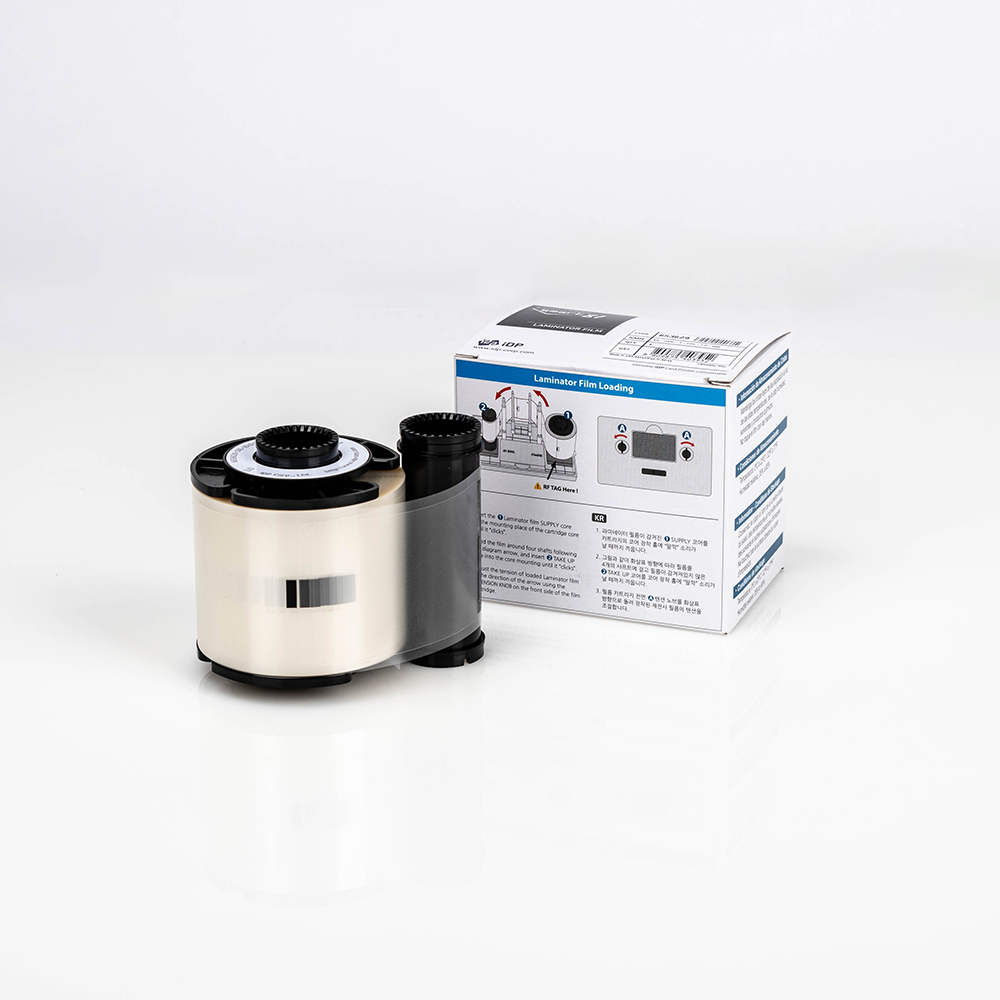

| 900863 | SOLID-810 Clear Laminate, Clear Patch 1mil Film, 500 prints/roll | |
| 900865 | SOLID-810 L Laminate “Celestial” Hologram 1mil Patch Laminate Film, 500 patches per roll | |
| 900872 | SOLID-810L Laminate Clear IC Chip, 1mil Patch, 500 patches per roll | |
| 900871 | SOLID-810L “Globe Flags” Holo Laminate, Overlay/ThinFilm Film, 1000 cards per roll, 1-Year Warranty |
Other options are available, please contact your salesperson for more information
