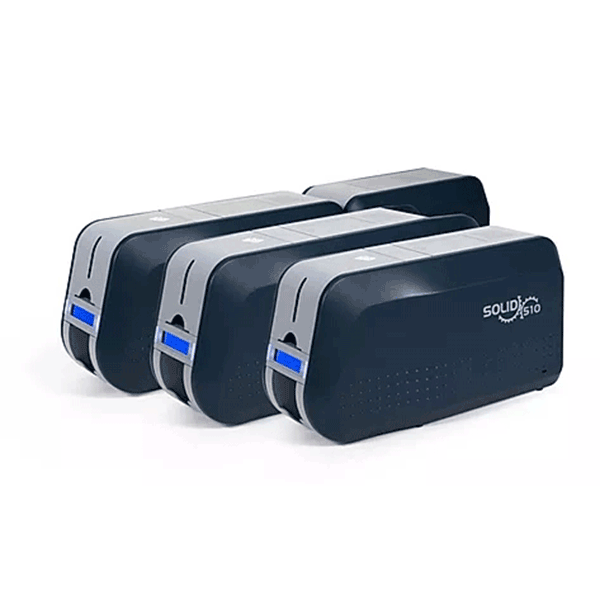

SOLID-510 Series Card Printer
Professional Full Color Card Printer
Elevate your Print Quality w/ FINE™ Imaging Technology
300dpi (Color), 600, 1200dpi (Mono only)
Edge-to-Edge Full Color Printing
Professional Series Dye-Sublimation Printer (Rugged Metal-Framed Construction)
Automatic Card Feeding
Over 211 cards per Hour
3-Year Advance Exchange Warranty

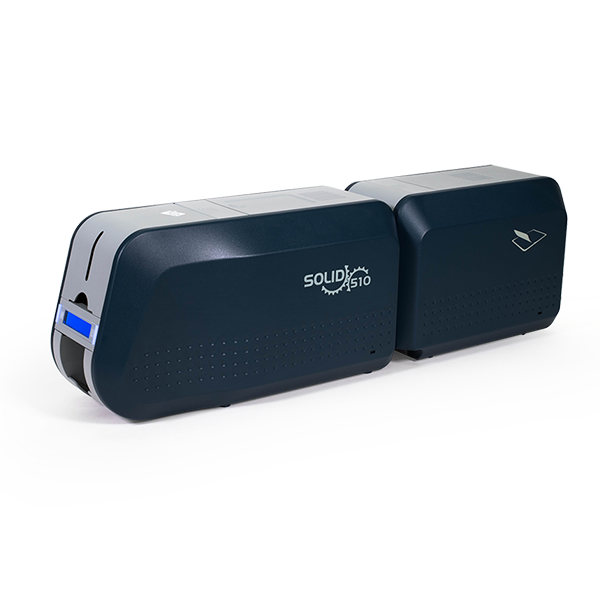

The IDP SOLID-510, a robust metal-framed full color card printer, is your go-to solution for exceptional card production in your dynamic environment. This reliable color card printer seamlessly blends durability and cutting-edge technology, ensuring top-notch performance for full-color or monochrome cards. Simplify your card printing experience with optional features such as duplex printing, laminating, and ethernet connectivity. Tailored for diverse applications, this double-sided ID card printer excels in producing corporate IDs, access control badges, and student IDs, boasting a metal frame for superior print quality, higher throughput, prolonged printer life, and reduced shipping damages.

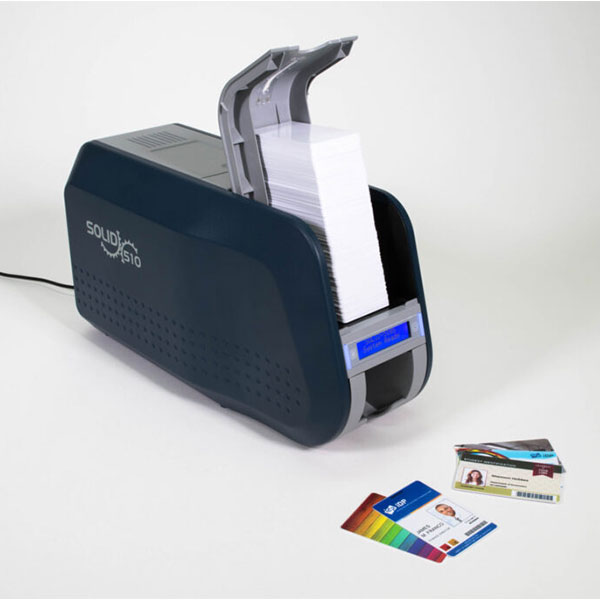

Elevate your card production speed with high-speed printing, featuring a 200-card input hopper and monochrome printing with magnetic encoding of over 600 cards per hour. Fortify your security measures with features like security lamination, UV, and SMARTMark printed security, coupled with options for keyed consumables and Kensington® type locks. Choose from multiple encoding options, including magnetic stripe, contact, and contactless smart cards, and go even further with the SOLID-510 Series duplex ID card printers, offering compatibility with legacy systems through IDP’s OpenMag driver. The SOLID-510 card printer—where durability meets brilliance, reliability, and advanced security. See also our IDP SOLID-510OC Card Printer.
| Print Type | Dye-Sublimation |
|---|---|
| Print Area | Edge to Edge |
| Resolution | 300dpi (Color), 600, 1200dpi (mono only) |
| Card Feeding | Automatic |
| Card Size | ISO CR80 Or CR79 (Option-Factory Installed) |
| Card Thickness | 0.38mm (15mil) – 1.0mm (40mil) |
| Card Type | PVC, PET, Composite PVC |
| Monochrome | 5 sec./card (720 cards/hour) |
| YMCKO | Max. 17 sec./card (212 cards/hour) |
| Memory | 64MB RAM |
| Control Panel | 2 LED Button |
| Communication | USB/Ethernet, SNMPv3 (Option), WiFi (Option) |
|---|---|
| Power Supply | DC 24V |
| Power Consumption | 48W |
| Temperature/Humidity | 15~35ºC/35~70% |
| Product Dimensions (Inch WxLxH) | 6.5″ W x 15.4″ L x 8.3″ H |
| Weights (lbs) | 10 (lbs) |
| Encoding | Mag Read/ Write, HiCo/ LoCo), JIS II Contact: ISO 7816 (ID-1) Contactless: DESFIRE, ICLASS, Prox* |
| Certifications | CB, CE FCC, KC, CCC |
| Supported Platforms | MS Windows 10/11, Mac OS, Linux |
Printer Ordering Information
| 651418 | Single Sided Card Printer / No Encoding Option / USB | |
| 651420 | Dual Sided Card Printer / No Encoding Option / USB | |
| 651422 | Dual Sided Card Printer & Laminator / No Encoding Option / USB | |
Options
| 651367 | SOLID-510 Ethernet option, best when ordered with printer | |
| 651356 | SOLID-510 Magnetic Encoder, best when ordered with printer |
Other configurations are available, please contact your sales person for more information
Common Ink Ribbon Ordering Information
| 659592 | YMCKO Full-color, resin black and overlay panel ribbon with cleaning roller, 250 cards/roll | |
| 659593 | YMCKOK Full-color, two resin black and overlay panel ribbon with cleaning roller, 200 cards/roll | |
| 659594 | YMCFKO Full-color and UV panel ribbon with cleaning roller, 200 cards/roll | |
| 659596 | K Resin black ribbon with cleaning roller, 1200 cards/roll |
Common Laminate Ordering Information
| 659609 | Clear patch type laminate film, 1mil (25mic), standard, 250 cards/roll | |
| 659608 | Hologram patch type laminate film, 1mil (25mic), “Globe Flags”, 250 cards/roll |
Other consumables are available, please contact your sales person for more information
SOLID-510OC Casinos
Casino Player Card Printer – Rugged reliability – Open Card Compatible
The smallest, fastest, and best value ID Card Printer its in-class

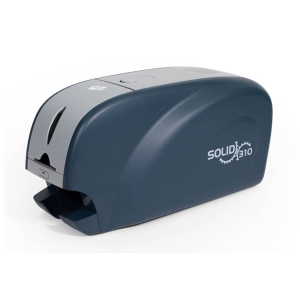

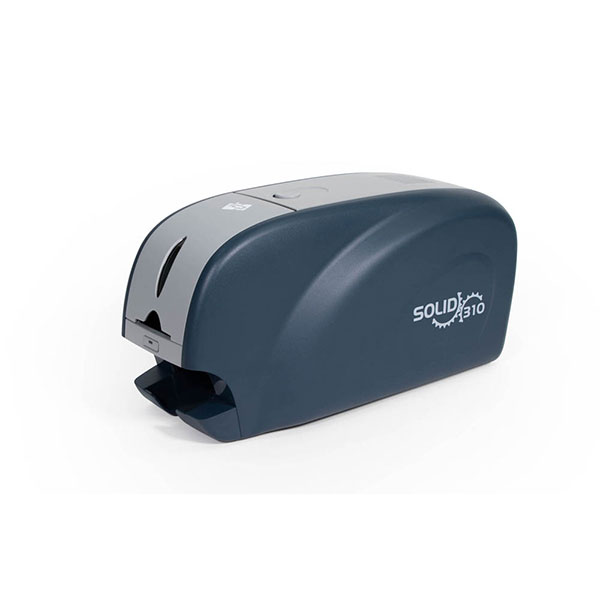

SOLID-310 Series
